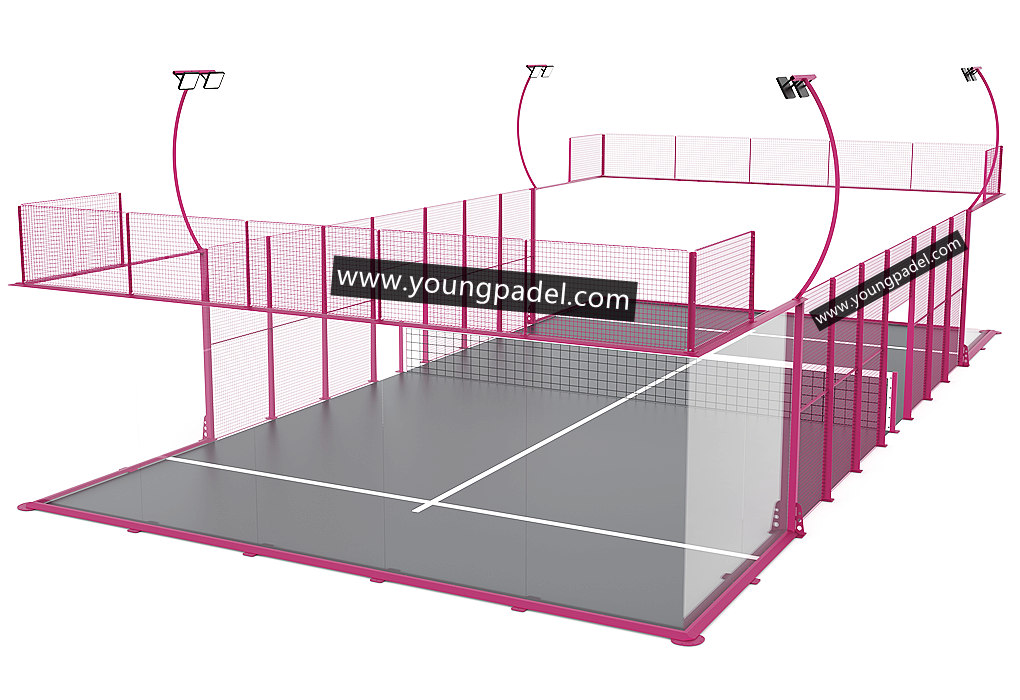

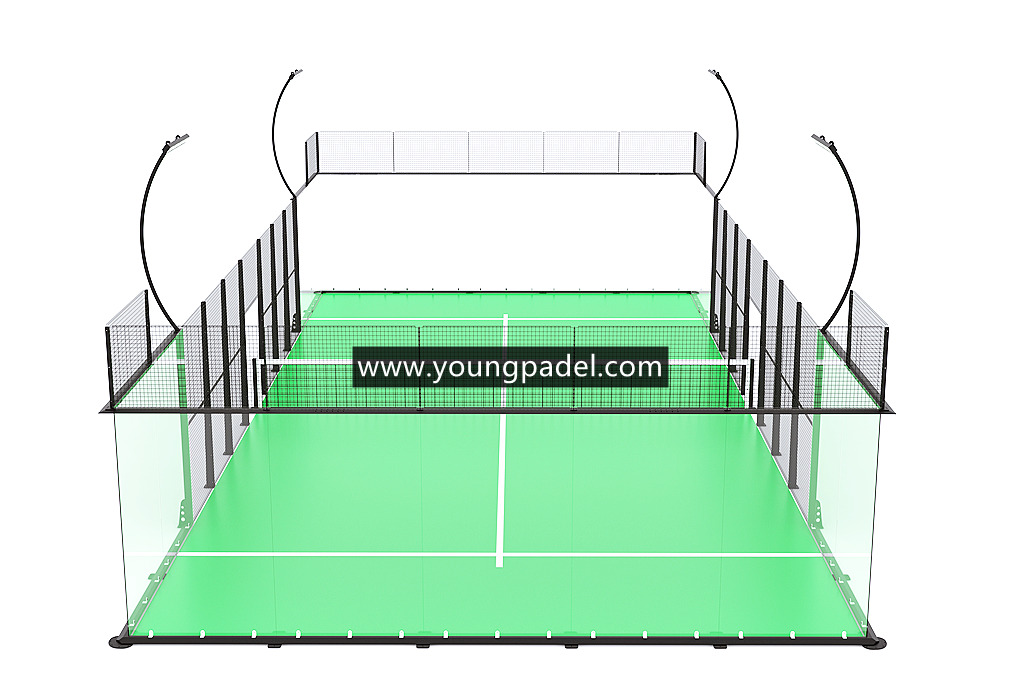

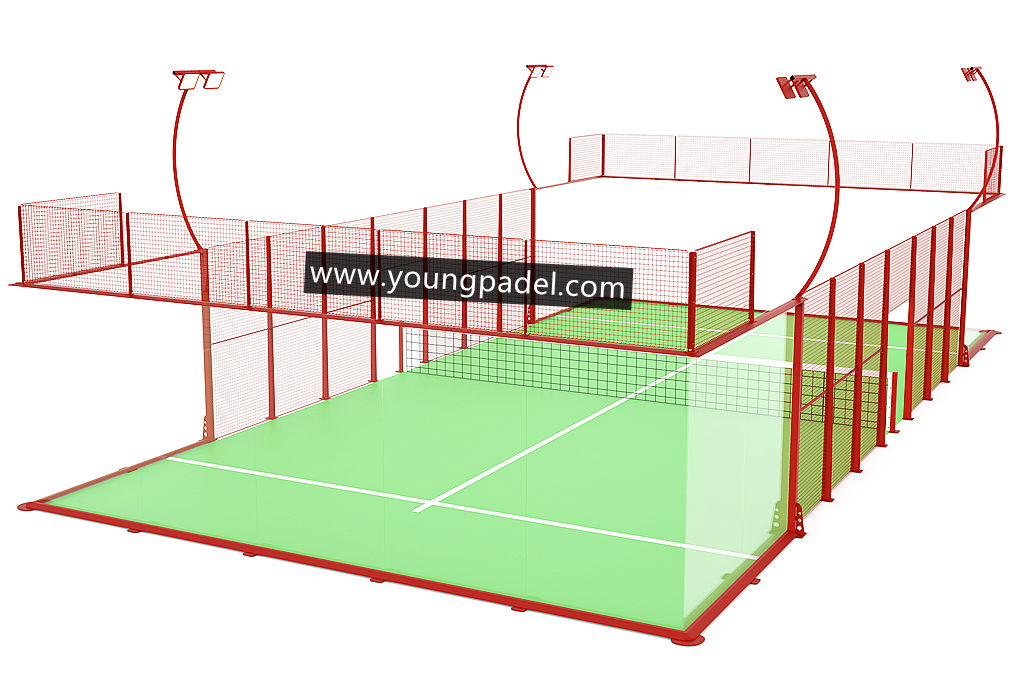

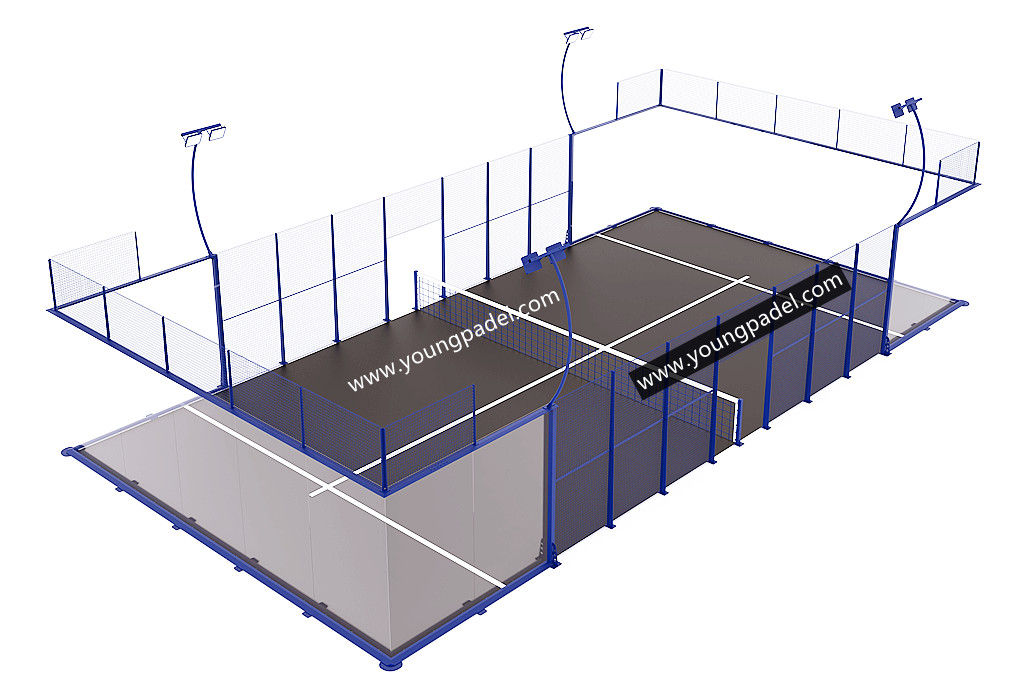

The Court is Comply with Premier Padel Tour Standards and Rules. This new model Super Panoramic Padel Courts is Popular and Hot worldwide now.a
1. The new design Official Premier Padel Tour Court employs a concealed fixing method, eliminating the appearance of screws and accessories within the glass area and maximizing the field of vision.
2. All steel pipes and Accessories are processed using digital intelligent manufacturing equipment to ensure precise dimensions, saving customers installation time and costs. The installed court is Perfect, Safe, and Sturdy.
3. The upper and lower crossbeams of the glass area are V-shaped steel pipes; these slender, linear crossbeams offer a wider and more captivating view.
4. Raw Materails, Steel Pipe, Mesh Fence and Accessories are all hot-dip galvanized , 1 layer zinc powder spraying；another layer outdoor high-quality powder coating. All 2 times high quality powder coating on the surface. So It will not rust after 30 years of outdoor rain exposure.
Mesh Fence:
The frameless mesh design allows for greater visual transparency. One-piece molded wire mesh, embedded wire mesh. More attractive appearance, More Safer for Padel Players.
Wire mesh specifications: 50*50*4 mm. Hot-dip galvanized wire mesh.
Light Columns: 100*100*3mm
Q235 hot-dip galvanized square tube ,Intelligent robotic fully automated
welding ensures higher dimensional accuracy and a smoother welded surface. overall electrostatic spraying with 2 times Powder-coating on surface.
special process provides better corrosion resistance and a smoother surface texture.
Top Crossbeam for padel tennis court: V-Shaped tube :
The top crossbeam is fixed to the glass from inside the court, so the screws and connectors are not visible from the outside , providing a wider and more beautiful view.
Q235 hot-dip galvanized , One-piece molding, digital intelligent
equipment for drilling and cutting, precise hole dimensions and positions.
Process: 3 layers of anti-rust and anti-corrosion, hot-dip galvanizing treatment；
zinc powder spraying；outdoor high-quality powder coating
Bottom Crossbeam for Glass:
Premier Padel Court The trapezoidal steel pipes feature a horizontal bottom beam and a trapezoidal sloping top, creating a panoramic view. The glass is internally concealed and fixed to the bottom beam, resulting in a cleaner and more aesthetically pleasing design.
12mm Tempered Glass:
Complies with European Standard EN 12150-1, EN 12150-2 ,
CE Certificate. Package: Wood Carton, Finish: Hole drilled , UDEM Certificated,
Artificial Turf Design for Padel:
Curled Type, Reinforced monofilament Grass：
Grass Passed Certificate:
CE , ROHS , GB/T 21604-2008 (Skin irritation test)
GB 21510-2008 (Antibacterial and Antifungal Testing)
Lisport (Wear-resistant 150,000 weeks )
SGS (Resist UVA5000h) , GBT20394—2013 (Prevent Burn Test) .
REACH205 (European standard )
GBT20394—2019 All test , GB36246-2018 All test.
Height: 12mm. DTEX: 10000 - 13500 , Color: Customized .
Guage Inch: 3/16 , Turf Backing: PP+PP+PU.
Density: 58800 to 63000/ m² .
LED Lights:
8 Sets LED lights with China Famous Brand, each set power is 200 W.
IP 65 Waterproof .The light column is embedded inside the fence.
Height of the light column is 6000 mm, illumination reaches 500 Lux.
The shell is thin, light in weight. This new technology material outdoor
IP65 waterproof LED light is easy to install. It is convenient to adjust
the irradiation direction.
LED Light Post:
Height: 3000mm, C-Shaped light pole, 3 mm thick round tube, 50mm diameter.
Hot-dip galvanized round tube.
Screws & Accessories:
Material: 304 Stainless Steel .
Technology: CNC intelligent digital machines cutting, drilling and processing.
This New model court is for Official World Padel Tour Global.
